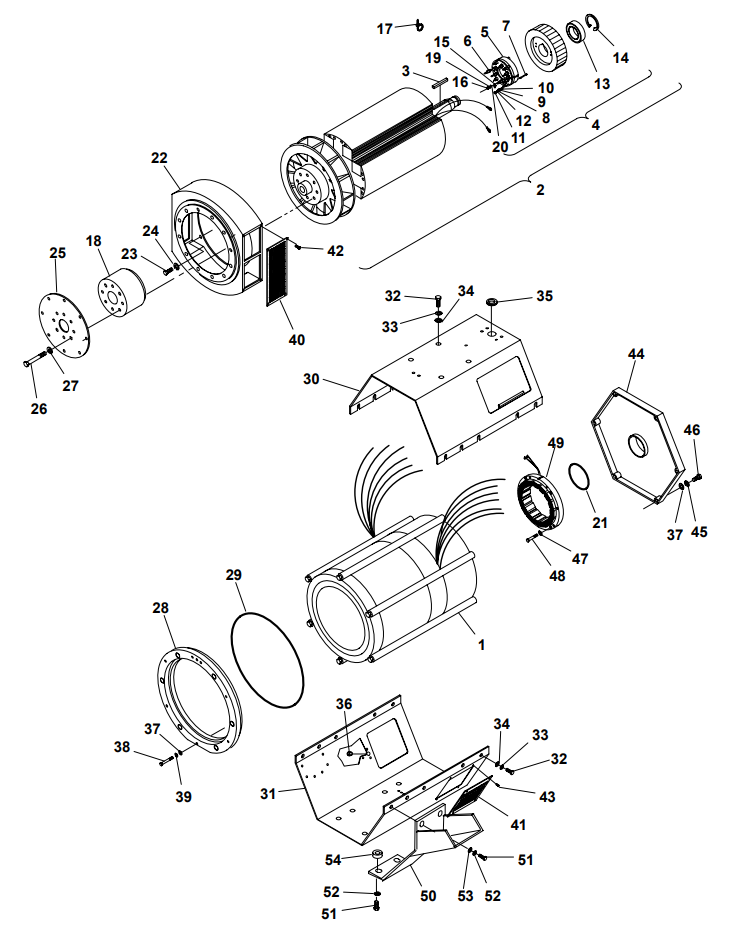

GeneratorREF PART QTY PART REF PART QTY PARTNO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION31 Cover, Stator − BottomUC22 Generator No.232−3819−02 1 3096−04 & 3096−09232−3819−03 1 300mm Stack Len
Generator REF PART QTY PART REF PART QTY PART NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION 31 Cover, Stator ? Bottom UC22 Generator No. 232?3819?02 1 3096?04 & 3096?09 232?3819?03 1 300mm Stack Length UC27 Generator No. 232?3820?01 1 3097?02, 3097?04 and 3097?07 232?3820?02 1 3097?03 and 3097?09 32 Screw, Cap ? Hex Head M10 x 25mm UC22 Generator No. 800?3017?37 10 3096?04 and 3096?09 UC27 Generator 800?3017?54 10 M12 x 30mm 33 Washer, Lock ? Spring M10 UC22 Generator 850?0114?55 10 3096?04 and 3096?09 UC27 Generator 850?0114?54 10 M12 34 Washer, Flat M10 UC22 Generator 526?0399?62 10 3096?04 and 3096?09 UC27 Generator 526?0399?64 10 M12 35 508?1057 1 Grommet 36 517?0135 1 Plug, Hole 37 Washer, Flat UC22 Generator 232?3441 12 M8 UC27 Generator 526?0423 12 M10 38 Screw, Cap ? Hex Head UC22 Generator 800?3017?20 6 M8 x 25mm UC27 Generator 800?3017?38 6 M10 x 30mm 39 Washer, Lock ? Spring UC22 Generator 850?0114?54 6 M8 UC27 Generator 850?0114?55 6 M10 40 ? 2 Guard, Fan ? Generator (See Page 66) 41 ? 2 Screen, Air Inlet (See Page 66) 42 ? 8 Screw, Self-Locking ? Hex Washer Head (See Page 66) 43 ? 8 Screw, Self-Locking ? Hex Washer Head (See Page 66) 44 Bell, End 211?0422 1 UC22 Generator 211?0423 1 UC27 Generator 45 Washer, Lock ? Spring 850?0114?54 6 M8 (UC22 Generator) 850?0114?55 6 M10 (UC27 Generator) 46 Screw, Cap ? Hex Head 800?3017?20 6 M8 x 25mm, UC22 Generator) 800?3017?38 6 M10 x 30mm UC27 Generator) 47 850?2006 4 Washer, Lock ? Spring (M6) 48 Screw, Cap ? Hex Head (M6) UC22 Generator No. 800?2042 4 3096?04 and 3096?09 UC27 Generator No. 800?2042 4 3097?02, 3097?04 and 3097?07 800?2046 4 3097?03 and 3097?09 49 Stator, Exciter UC22 Generator No. 220?4293?08 1 3096?04, 3096?08 and 3096?09 UC27 Generator No. 220?4293?08 1 3097?02, 3097?04 and 3097?07 220?4293?09 1 3097?03 and 3097?09 50 Bracket, Generator Mounting 232?3452 2 UC22 Generator 232?3454 2 UC27 Generator 51 Screw, Cap ? Hex head 800?3017?38 8 M10 UC22 Generator 800?3017?55 8 M12 UC27 Generator 52 Washer, Lock ? Spring 850?1114?55 8 M10 UC22 Generator 850?1114?56 8 M12 UC27 Generator 53 Washer, Flat 526?0399?62 4 M10 UC22 Generator 526?0399?64 4 M12 UC27 Generator 54 Spacer, Mounting Foot 232?3730?03 4 UC22 Generator 232?3730?04 4 UC27 Generator * Parts Included in Generator Rotor Assemblies ? Parts Included in Exciter Rotor Assemblies # Parts Included in Rectifier Assemblies.
